| Product Attribute | Attribute Value |
|---|---|
| Controller Type | Millenium 3 Controllers |
| Family Name | Millenium 3 Expandable Family |

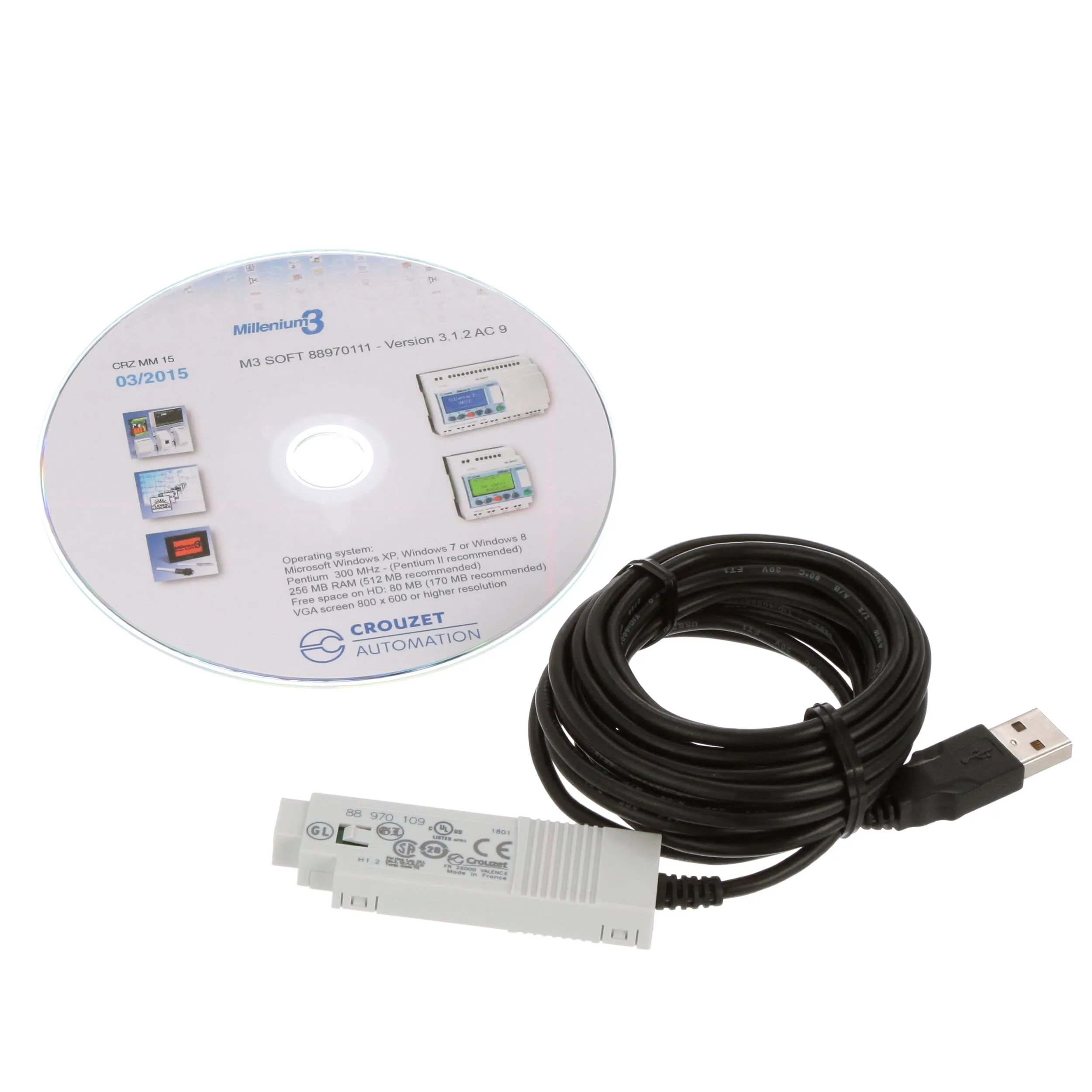

| Includes | Expandable Millenium 3 (XD 26), Interactive CD ROM, USB Link Cable |
| Input Type | Analogue⁄Digital |
| Kit Type | Starter Kit |
| Maximum Operating Temperature | 70 °C |
| Minimum Operating Temperature | -20 °C |
| Mounting Type | DIN Rail, Panel |
| Number of Inputs | 16 |
| Number of Outputs | 8 |
| Output Type | Relay |
| Primary Type | Starter Kit |
| Series | |
| Standards | CE Marked, CSA Certified, GL Certified, UL Listed |
| Supply Voltage | 24 VDC |
| Temperature Operating Range | -20 to 70 °C |
| Type | PLC |
Overview

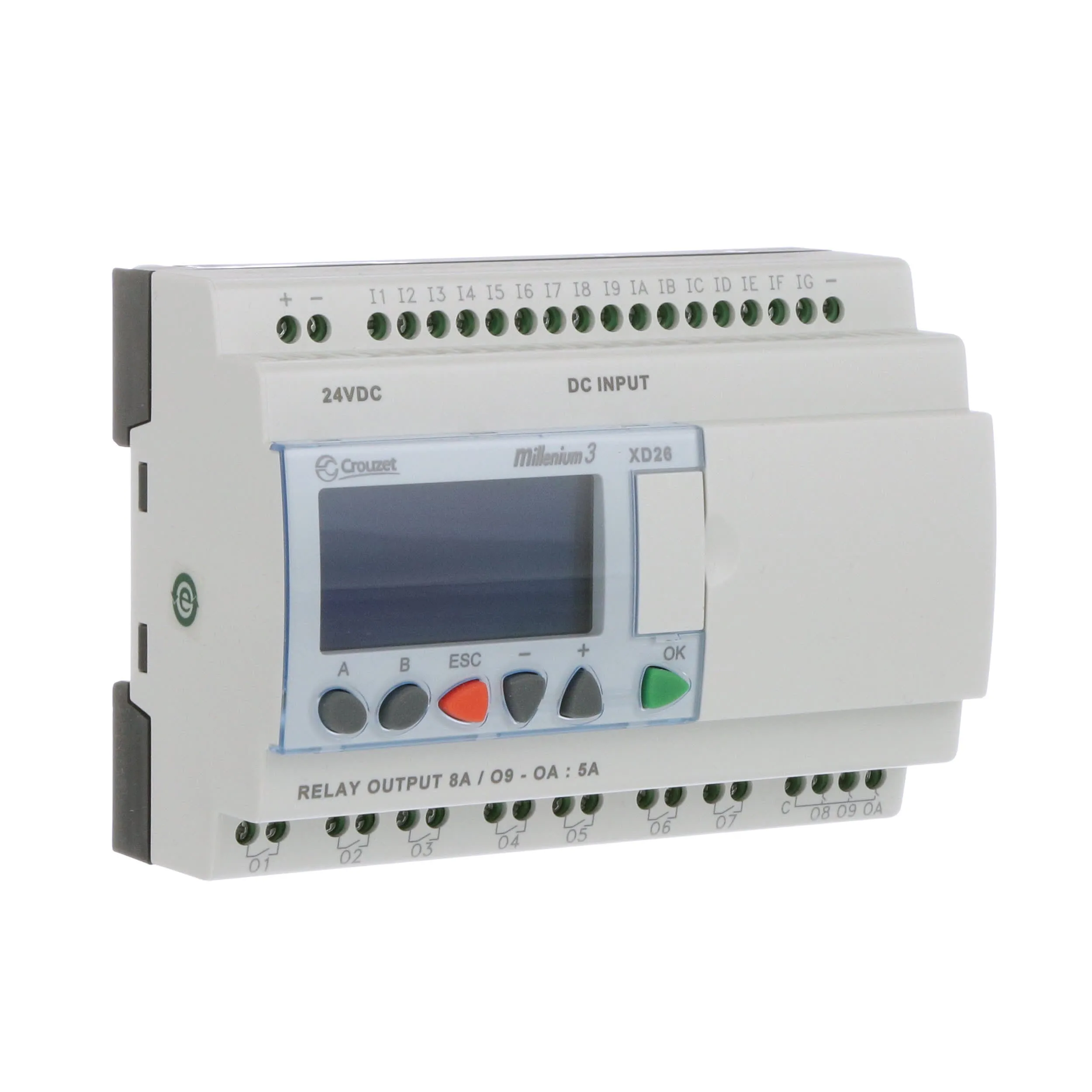

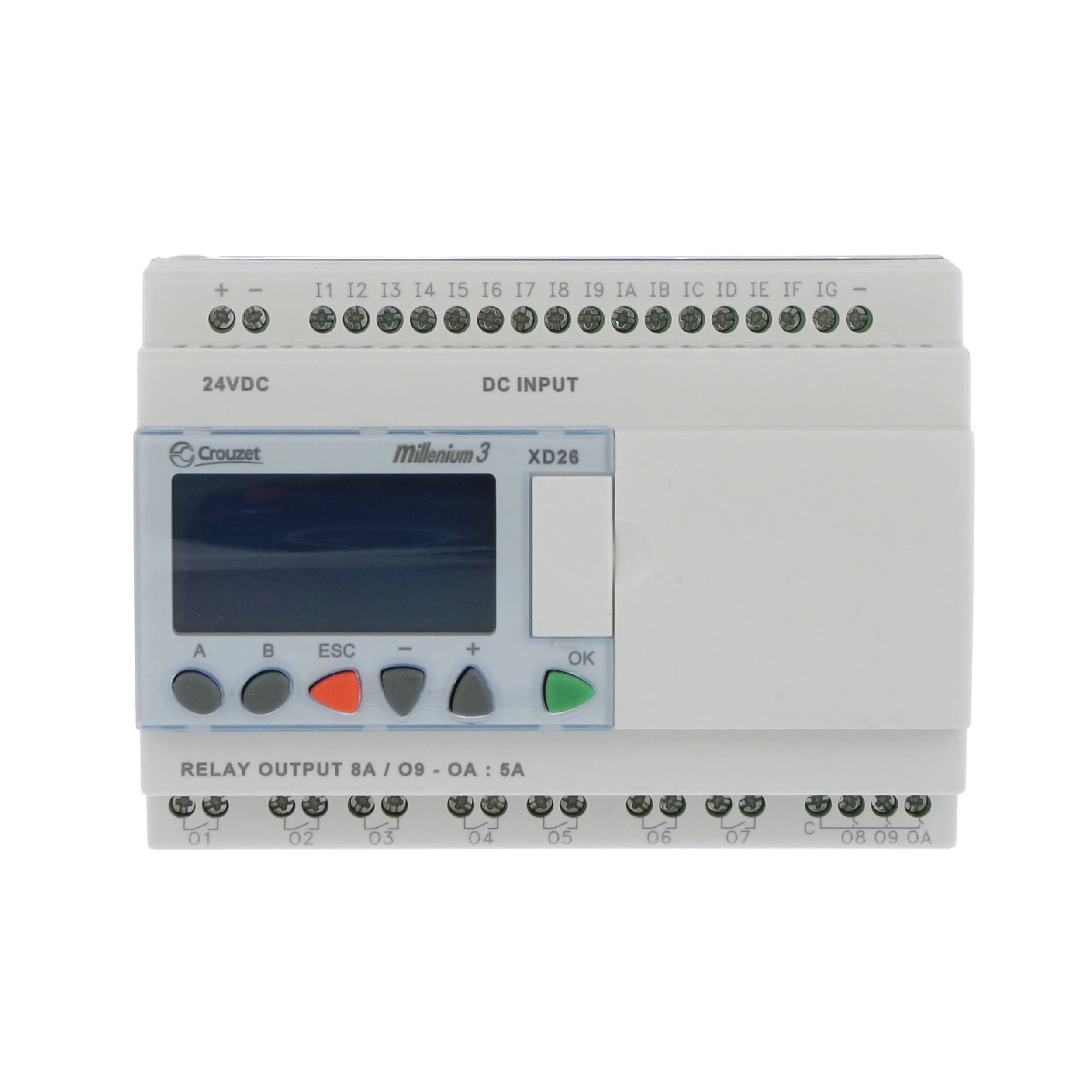

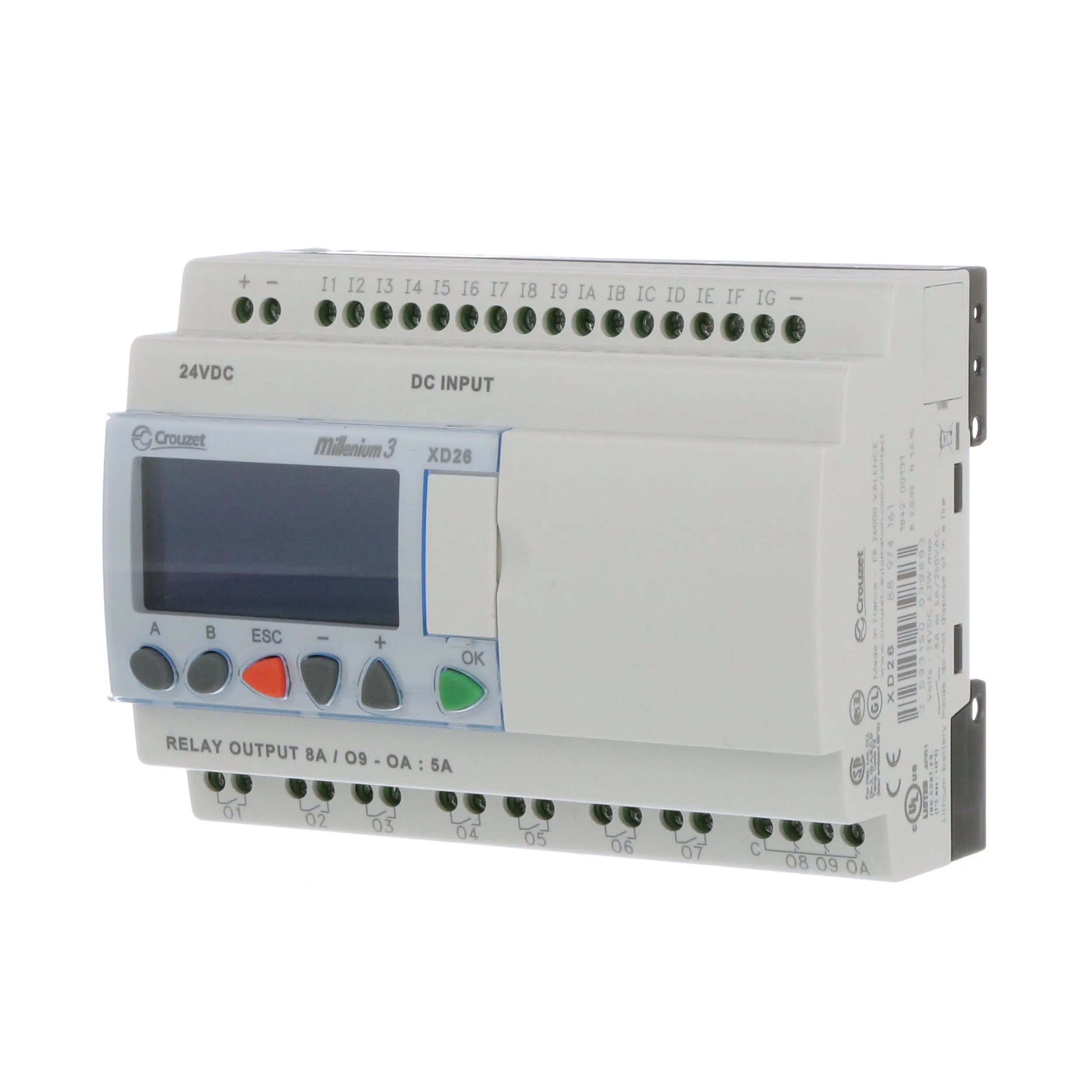

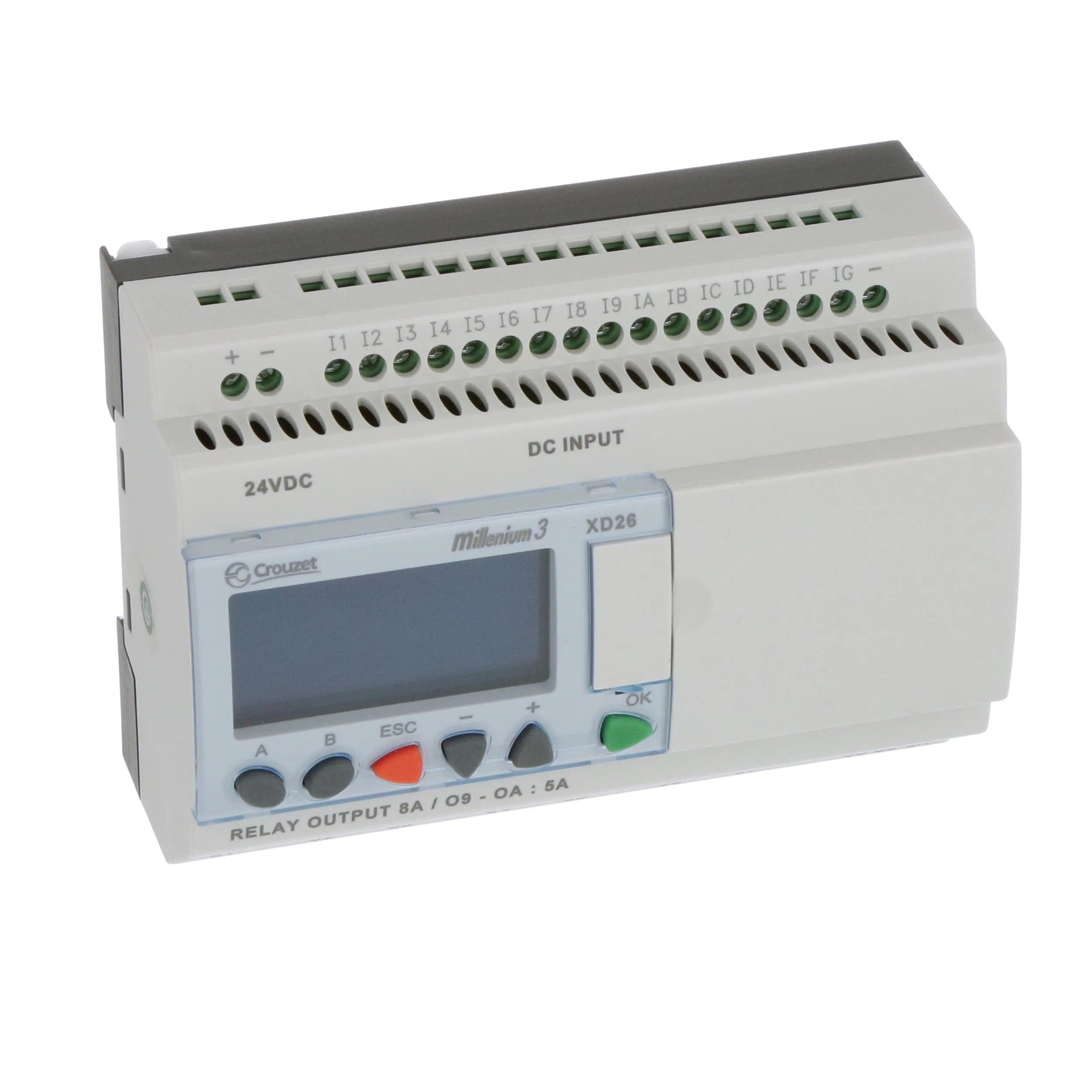

Crouzet Millenium 3 Expandable Family — XD10 / XD26 Series | Starter Kits With Display:
The Millenium 3 Smart logic controller is the easiest programmable module to use on the market. Easy to program thanks to M3 Soft, it enables the control and monitoring of machines and automation installations with up to 50 I/Os. Easy to program and to implement, it enables the control and monitoring of machines and automation installations with up to 50 I/O. It is positioned right at the heart of the Automation range. Millenium 3 offers both standard and customized product solutions for a range of applications, including automatic barriers, automatic doors, turnstiles, sectional doors and disabled access ramps.
Features:
Each kit includes:
